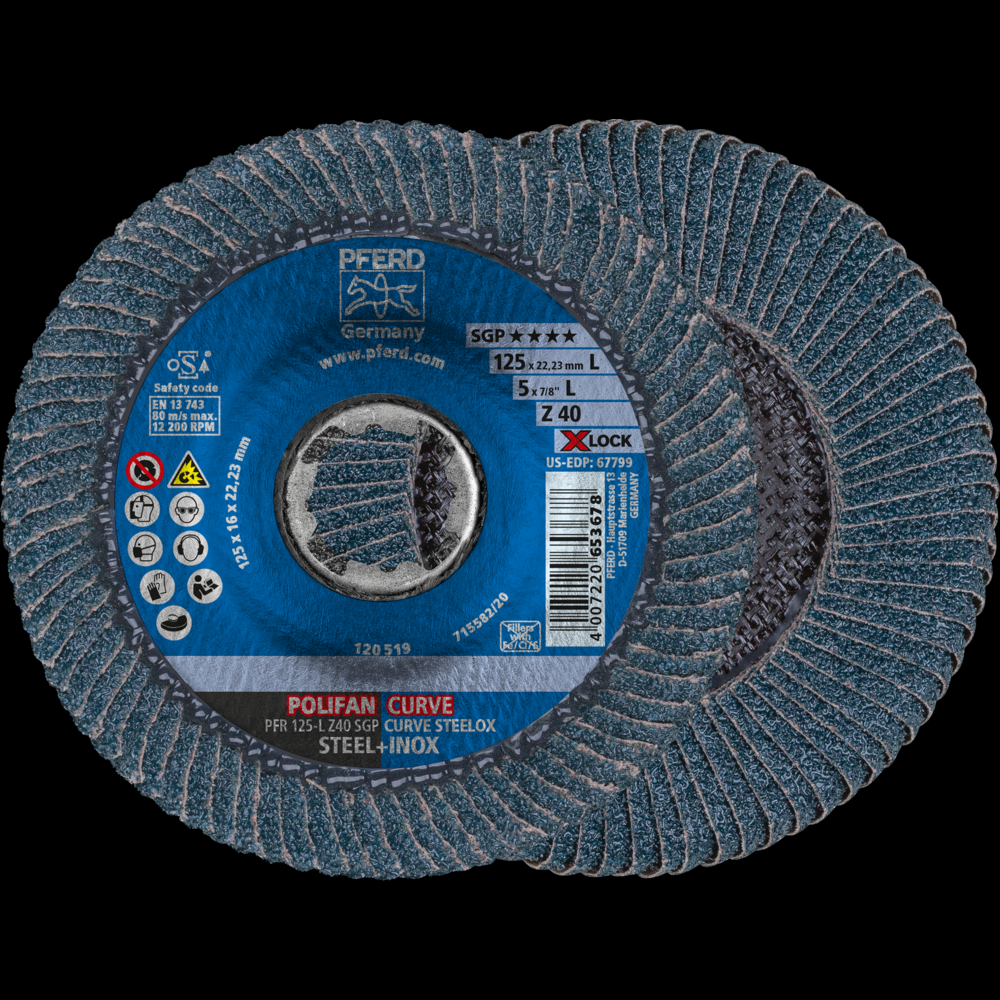

PFERD Flap Disc, 5", X-LOCK, Z SGP CURVE STEELOX, 40 Grit, Large Radius, Zirconia

PFERD Flap Disc, 5", X-LOCK, Z SGP CURVE STEELOX, 40 Grit, Large Radius, Zirconia by Pferd Inc.

Call For Price
  • Part Number: 609DG94
  • UPC: 04007220113806
  • Availability: Call to check availability
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Special Line SGP includes products engineered for specific tasks that offer the user key advantages over conventional products. This quality line also includes products that, due to their particularly high performance, offer ultimate economic efficiency. The patented flap disc POLIFAN-CURVE has been specially developed for work on fillet welds. It is the only flap disc in the world featuring a radial configuration of flaps allowing for grinding with all surfaces of the disc. High-performance flap disc for maximum stock removal on steel and stainless steel (INOX). The Bosch X-LOCK system for angle grinders enables you to change products quickly and easily. Instead of a round center hole, the X-LOCK system features an X-shaped contour, which allows the product to be fixed on the angle grinder in a form-fitting manner. This means different kinds of products can be clamped in a reliable manner in a very short space of time. The unique system meets the highest of quality and safety standards and can withstand rough and harsh application conditions.;X-LOCK from Bosch is the world's first quick-changing system for angle grinders: Position the tool in the X-LOCK holder, click it into place – and you're ready! It's never been so easy to change accessories on angle grinders. X-LOCK is creating a new standard which makes professionals’ lives easier and increases their productivity. Bosch Power Tools relies on strong partners like PFERD. PFERD has developed the principle for connecting the X-LOCK punched part with the bonded abrasive, flap discs and brushes and created the conditions to enable them to be produced industrially.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Sanding Discs and Kits
Category Level 4:
Flap Discs
Abrasive:
Zirconia, Z
Applications:
Chamfering
Applications 1:
Deburring
Applications 2:
Work on weld seams
Applications 3:
Work on fillet welds
Country of Origin:
DE
Customs Number:
6805100000
Diameter External (In):
5.00
Diameter Hole:
7/8 Inch
Drive Types:
Angle grinder
EAN:
4007220113806
EDP:
67799
Fillet Weld Radius (In):
0.31
Grit Size:
40
Item Quantity:
25
Item Weight (kgs):
0.138
MANUFACTURER_TYPE_DESCR:
PFR 125-L Z 40 SGP CURVE STEELOX/X-LOCK
Materials that can be worked:
Stainless steel (INOX)
Materials that can be worked 1:
Steel
Mounting System:
X-LOCK
Order Quanityt:
110
Pferdefficiency:
PFERDEFFICIENCY recommends POLIFAN-CURVE flap discs to achieve perfect results as quickly as possible.
Pferdergonomics:
PFERDERGONOMICS recommends POLIFAN-CURVE flap discs to sustainably reduce the vibration, noise and dust produced during use and to perceptibly improve comfort when working.
Prop 65:
View
Recommendations for use:
After the abrasive on the outer edge of the disc has worn down, the disc can continue to be used as a conventional flap disc.
Recommendations for use 1:
For fillet weld radii > 5/16” or throat thickness > 1/4” with 90° joint, width at the radius: 9/16” with diameter 6” or 7”.
Recommendations for use 2:
Place the product on the X-LOCK quick-change system of your angle grinder and secure it by lightly pressing it down. The product will audibly click into place.
Recommendations for use 3:
Release the product by using the lever.
Shape:
PFR CURVE
Size:
L (5/16")
UNSPNC:
31191506
UPC Code:
97758677998
Manufactured By:
Pferd Inc.
Other Details
Excellent service life when working on fillet welds.
High productivity due to high stock removal rate.
POLIFAN flap discs with X-LOCK can also be used on traditional angle grinders with M14 and 5/8"-11 threads.
Precise and optimum grinding of the fillet weld geometry.
Secure fixing as the product audibly clicks into place.
With X-LOCK arbor for quick and easy tool changing.
