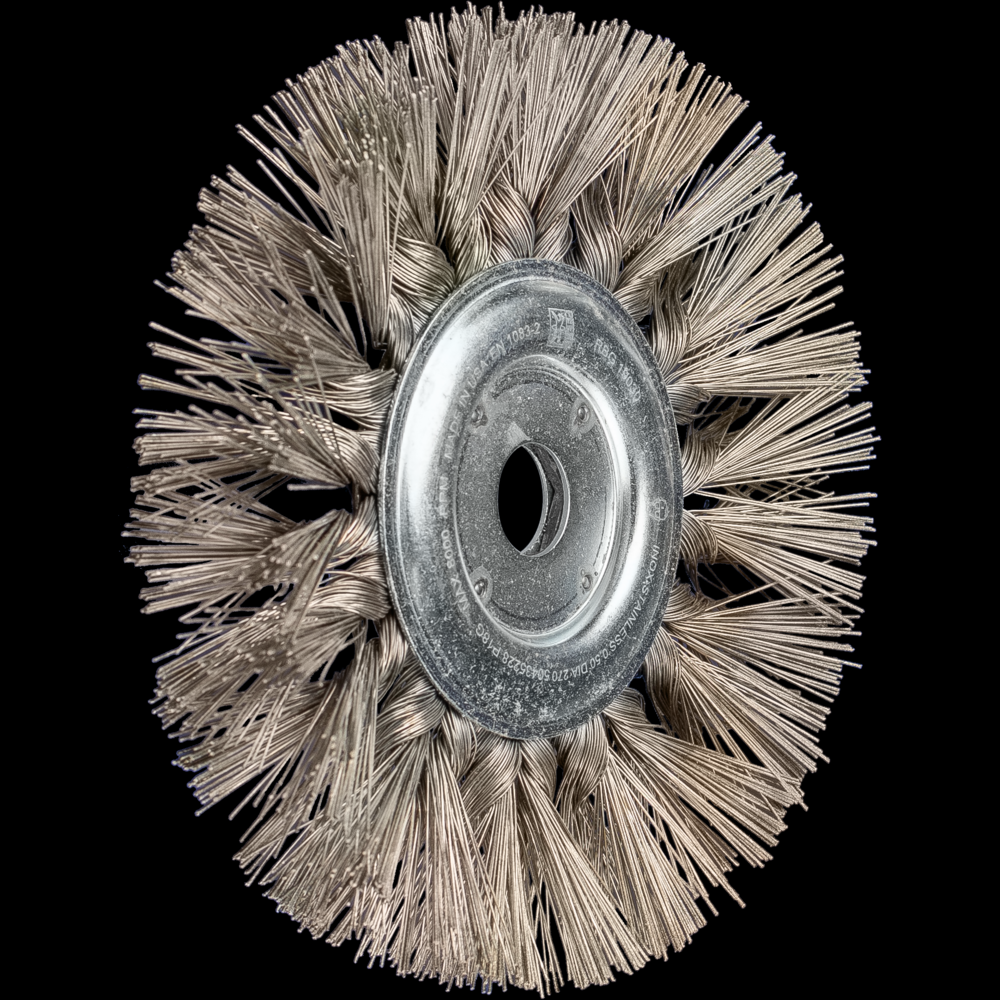

The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces than conventional knotted brushes. INOX DIA filament brushes are designed for particularly demanding applciations that require an aggressive brush. They are primarily used on extremely hard materials. Stainless steel wire (INOX) diamond (DIA) is temperature-resistant up to 850 °F.

Specifications

Details

Industrial Category:

Abrasives

Industrial Subcategory:

Abrasive Wheels, Discs and Brushes

Industrial Subtype:

Abrasive Brushes

Category Level 4:

Wire Wheel Brushes

Applications:

Cleaning

Applications 1:

Deburring

Applications 2:

Descaling

Applications 3:

Removing oxide layers

Country of Origin:

Diameter Arbor Hole With Adapter:

1-1/4 Inch

Diameter Filament Material (In):

0.02

Diameter Hole:

1-1/4 Inch

Drive Types:

Stationary machines

EDP:

84354

Filament Material:

Stainless steel wire (INOX) diamond (DIA)

Item Quantity:

Item Weight (kgs):

0.825

MANUFACTURER_TYPE_DESCR:

RBG 19020/22,2 INOX 0,50 DIA 270

Materials that can be worked:

Aluminum

Materials that can be worked 1:

Bronze

Materials that can be worked 10:

Stainless steel (INOX)

Materials that can be worked 11:

Titanium

Materials that can be worked 12:

Titanium alloys

Materials that can be worked 13:

Tungsten carbide

Materials that can be worked 14:

Wear-resistant coatings (powder metal alloys and hardfacing alloys)

Materials that can be worked 2:

Cobalt-based alloys

Materials that can be worked 3:

Hard non-ferrous metal

Materials that can be worked 4:

High-temperature-resistant materials

Materials that can be worked 5:

Mill scale

Materials that can be worked 6:

Nickel-based alloys (e.g. Inconell and Hastelloy)

Materials that can be worked 7:

Nickel or titanium-based superalloys

Materials that can be worked 8:

Other non-ferrous metals

Materials that can be worked 9:

Soft titanium alloys (tensile strength 500 N/mm²)

Mounting System:

Centre hole

Number Of Knots:

Optimum RPM:

1000 - 2000 RPM

Order Quanityt:

Prop 65:

View

Recommendations for use:

Please observe the recommended rotational speeds.

Trim Length (In):

2.00

UNSPNC:

31191521

UPC Code:

97758843546

Manufactured By:

Pferd Inc.

Other Details

Optimal ratio of aggressiveness and flexibility.
